Continuous Flow vs Batch Reaction for SM-102 Synthesis: What We Learned from Multi-kg GMP Campaigns
This article shares insights from multi-kg GMP campaigns for SM-102, an ionizable lipid used in Moderna’s mRNA-LNP platform. Batch scale-up often suffers from purity drops below 98%, broadened impurity profiles, and residual solvent exceedances due to poor heat/mass transfer, hot spots, and inconsistent pH/temperature control. The solution is a telescoped continuous flow process with micro/meso-fluidic reactors, in-line PAT (HPLC/FTIR), and continuous work-up/crystallization. Results show consistent impurity fingerprints, 30–40% higher yield, 99.5% purity, and <500 ppm residual solvents, establishing continuous flow as the only robust, ICH-compliant route for commercial SM-102 supply.
Continuous Flow vs Batch Reaction for SM-102 Synthesis: What We Learned from Multi-kg GMP Campaigns
Scaling up ionizable lipids like SM-102 from lab to GMP supply is rarely a straight line. As a CDMO process chemist focused on continuous flow and industrial amplification, I’ve seen batch processes hit hard walls — especially with complex, exothermic, mixing-sensitive molecules.

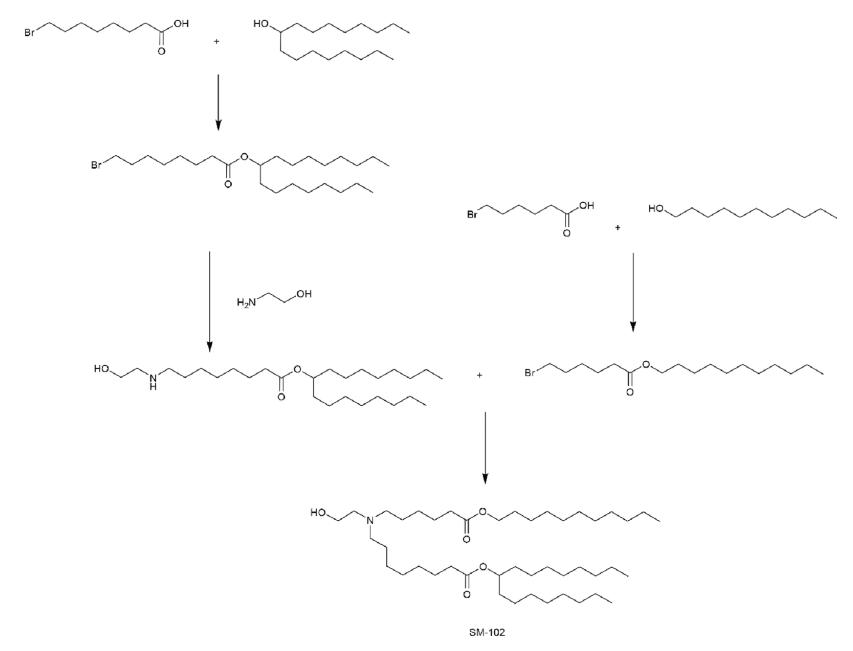

Schematic Diagram of the SM-102 Synthetic Route
SM-102 (the ionizable lipid behind Moderna’s mRNA-LNP platform) is a multi-step tertiary amine lipid involving reductive amination, esterification, and purification. In batch scale-up, we often see:
- Purity drops below 98%
- Impurity profile widens (alkyl halide adducts, over-alkylated species, hydrolysis products)
- Residual solvents (EtOH, DCM, THF) exceed ICH Q3C limits

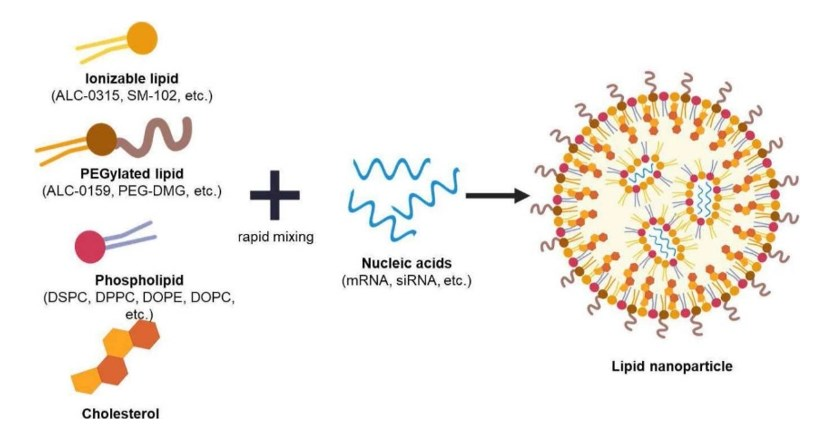

Lipid Nanoparticle (LNP) for RNA Delivery
Root cause?
Poor heat/mass transfer → local hot spots, variable residence times, inconsistent pH/temperature control. Exactly the conditions that drive side reactions in complex lipids.
✅ Our solution: a telescoped continuous flow process
l Micro/meso-fluidic reactor train – 4–5 steps with precise residence time (minutes vs hours), segmented flow for safe exothermic control
l In-line PAT (HPLC/FTIR) – real time monitoring of purity, impurity spectrum, residual solvents
l Continuous work-up & crystallization – liquid-liquid extraction + anti-solvent addition under tight pH/temperature control

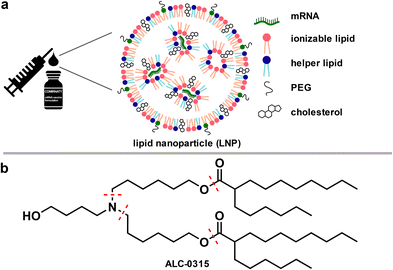

Fig. 1 a) Illustration depicting the role of ionizable lipids in lipid nanoparticles (LNPs) for mRNA delivery. b) Structure of ALC-0315, a key component in the formulation of Pfizer–BioNTech COVID-19 vaccine.
The result?
Ø Consistent impurity fingerprint across batches
Ø 30–40% higher overall yield
Ø 99.5% purity, <500 ppm residual solvents
Ø Fully validated process robustness for stable commercial supply
In scale-up, continuous flow is no longer “nice-to-have” — it’s the only reliable path to ICH-compliant, reproducible SM-102.

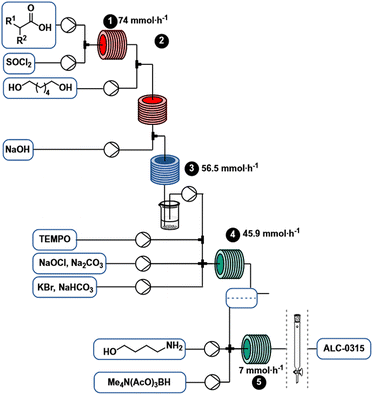

Complete process scheme for the synthesis of ALC-0315.
To my CDMO peers:
What’s your biggest bottleneck when scaling ionizable lipids? Let’s exchange risk control experiences in the comments.
